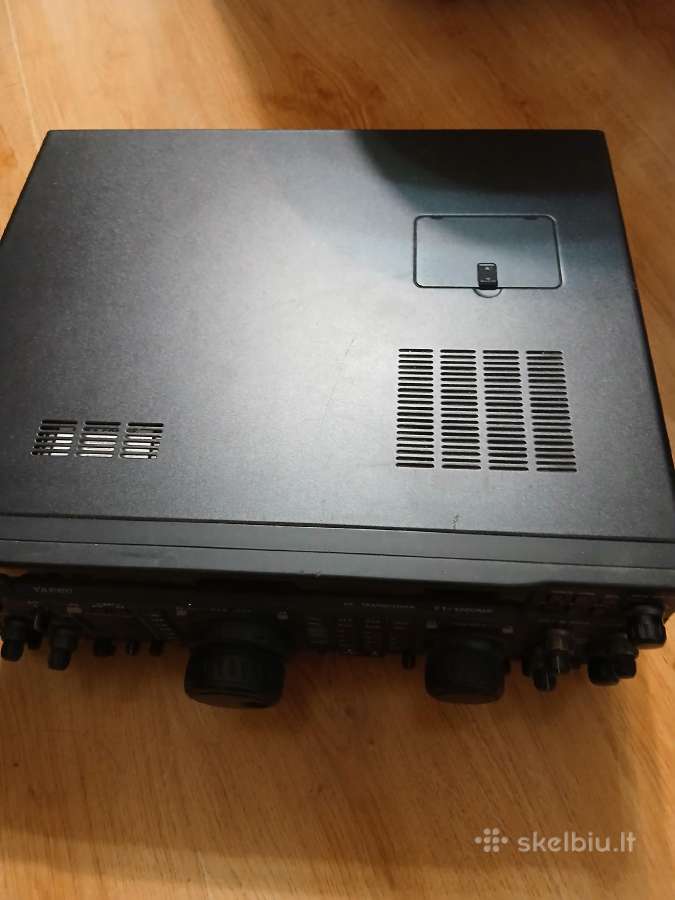

Yaesu Ft-1000mp

Parduodamas praktiškai naujas, minimaliai naudotas keliata ryšių su juo buvo padaryta išsibandyti kaip pats prietaisas veikia.
Trumpų bangų racijas(transiveris).
Pilna komplektacija.
Kaina galutinė: 1200€
Galima atvykus į vieta pasiimti.
Galimas siuntimas į kitus miestus su tarptautine siuntų pristatymo paslauga: tokiomis kaip DPD, DHL, UPS, FedEx ir kt. Perkantysis apmoka siuntimo išlaidas.


Prietaiso specifikacijos:
https://www.rigpix.com/yaesu/ft1000mp.htm
SPECIFICATIONS
GENERAL
Type: Amateur HF transceiver
Frequency range: TX: 10-160 m + WARC
RX: 0.1-30 MHz
Tuning steps: 0.625 / 1.25 / 2.5 / 5 / 10 Hz (SSB/CW/FSK)
100 Hz (AM/FM)
Frequency stability: 10 ppm @ -10 to +50C (14 to 122F)
2 ppm (TCXO-4) or 0.5 ppm (TCXO-6) options
Mode: TX: AM / FM / SSB / CW / RTTY / Packet
RX: AM / AM-sync / FM / SSB / CW / RTTY / Packet
Channels / memory management: 99 regular
9 scan edge (PMS)
5 QMB
RAM storage with lithium battery backup
Repeater shift / offset: 0-200 KHz
Power supply: Mains: 100-125 VAC or 200-234 VAC (3-pin IEC C14 connector)
or 13.8 VDC (6-pin Molex connector)
Current drain / power consumption: RX: Max 2.8 A @ 13.8 VDC
TX: Max 19 A @ 13.8 VDC
Antenna impedance / connector: 50 ohm (20-150 ohm with ATU) / Two SO-239 (RX/TX) and one phono/RCA (RX only)
Dimensions (W*H*D): 410*135*347 mm (16.14*5.32*13.66")
Weight: 15 Kg (33.07 lb)
Other features: CTCSS/PL encoder. CAT control. Electronic keyer. Automatic antenna tuner. Twin RX.




RECEIVER SECTION
Receiver system: Triple conversion superheterodyne (FM)
1st IF: 70.455 MHz
2nd IF: 8.215 MHz
3rd IF: 455 KHz
Quadruple conversion superheterodyne (AM/SSB/CW/FSK)
1st IF: 70.455 MHz
2nd IF: 8.215 MHz
3rd IF: 455 KHz
4th IF: ?
Sensitivity: AM (10 dB S/N, 6 KHz BW)
0.15-0.25 MHz: 40 uV
0.25-0.5 MHz: 32 uV
0.5-1.8 MHz: 16 uV
1.8-30 MHz: 2 uV
FM (12 dB SINAD)
1.8-30 MHz: 0.5 uV
SSB/CW (10 dB S/N, 2.4 KHz BW)
0.15-0.25 MHz: 5 uV
0.25-0.5 MHz: 4 uV
0.5-1.8 MHz: 2 uV
1.8-30 MHz: 0.25 uV
Selectivity: Available bandwidths

Button Modes -6 dB -60 dB
2.4 KHz All except FM 2.2 KHz 4.2 KHz
2.0 KHz All except AM/FM 2.0 KHz 3.6 KHz
500 Hz CW/RTTY/Packet 500 Hz 1.8 KHz
250 Hz CW/RTTY 250 Hz 700 Hz
- AM Wide 4 KHz 14 KHz
- FM 8 KHz 19 KHz
Image rejection: Main RX 1.8-30 MHz: 80 dB or better
Sub RX 1.8-30 MHz: 50 dB ore better
AF output power / speaker: 1.5 W at 10% distortion / 4 ohm
External speaker connector: 3.5 mm / 4-8 ohm




TRANSMITTER SECTION
RF output power:

Max pwr
AM: 25 W
FM: 100 W
SSB (PEP): 100 W
CW: 100 W
Modulation system: AM: A3E Low-level (Early stage)
FM: F3E Variable reactance
SSB: J3E Balanced, filtered carrier
AFSK: J1D, J2D Audio frequency shift keying
Max FM deviation (Factory set): 2.5 KHz
Spurious emissions: Better than -50 dB
Microphone impedance / connector: 500-600 ohm / 8-pin (Metal locking ring connector)
Microphone input level: ? mV




MISCELLANEOUS
Manufactured: Japan, 1995-200x (Discontinued)
Additional info:
Related documents: User manual (12.7 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
DVS-2
MD-100A8X
SP-8
TCXO-4
TCXO-6
YF-110CN
YF-110SN
YF-114CN
YF-114SN
YF-115C
YH-77STA Digital voice recorder
Desktop microphone
External speaker with filters and LL-7 phone patch option
High stability master reference oscillator, 2.0 ppm
High stability master reference oscillator, 0.5 ppm
250 Hz CW filter, main RX, 455 KHz 3rd IF
2 KHz filter, main RX, 455 KHz 3rd IF
250 Hz filter, main RX, 8.2 MHz 2nd IF
2 KHz filter, main RX, 8.2 MHz 2nd IF
Collins mecanical 500 Hz CW/RTTY filter, main/sub RX, 455 KHz IF
Lightweight stereo headphones
