Nauji Foxeer Reaper Extreme V3 5.8ghz 2.5w Vtx

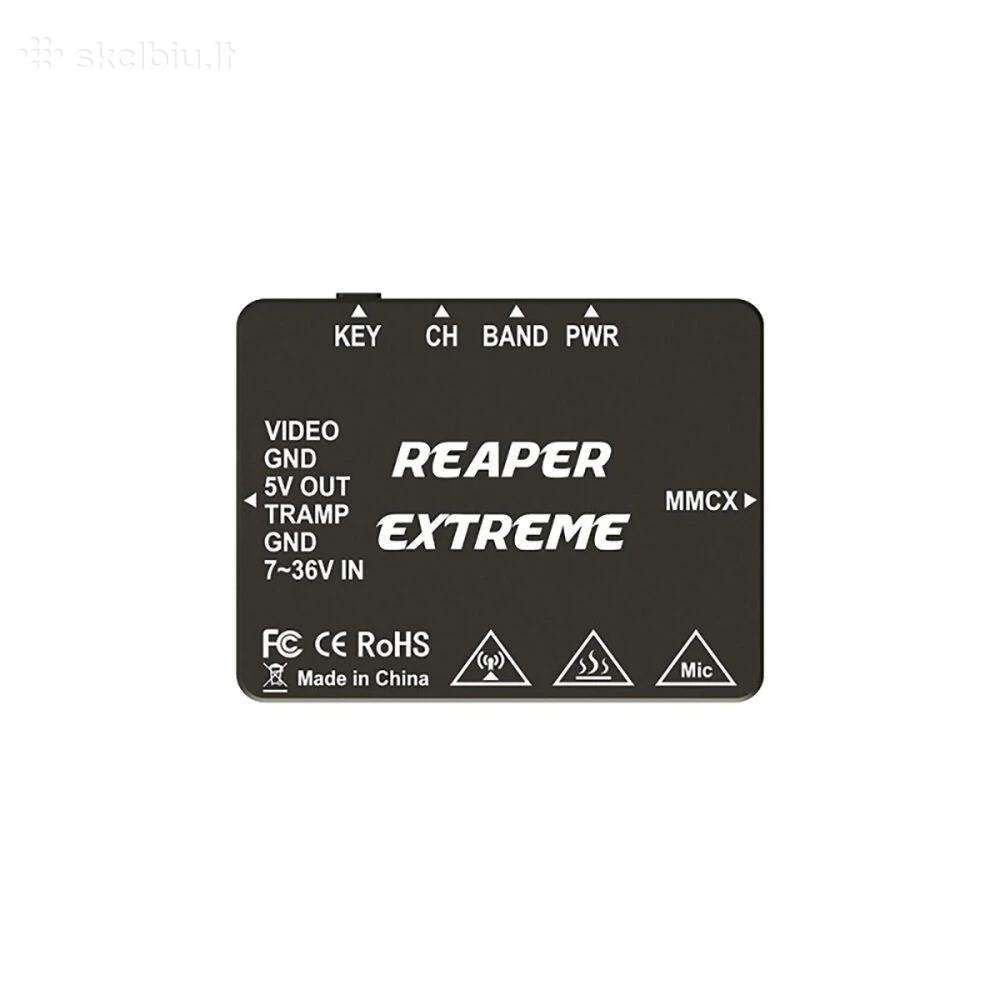

Foxeer Reaper Extreme V3
Frequency: 4.9G~6G
Input Voltage: 9~36V
Output Voltage: 5V
Channels: 80CH

# vtxtable (Foxeer Reaper Extreme 2.5W v3 80Ch (X-band)
vtxtable bands 8
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BAND_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BAND_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 BAND_F F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 BAND_R R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 BAND_H H CUSTOM 5653 5693 5733 5773 5813 5853 5893 5933
vtxtable band 7 BAND_L L CUSTOM 5333 5373 5413 5453 5493 5533 5573 5613
vtxtable band 8 BAND_X X CUSTOM 4990 5020 5050 5080 5110 5140 5170 5200
vtxtable powerlevels 5
vtxtable powervalues 25 100 200 400 600
vtxtable powerlabels 25 200 500 1.5 2.5

Apžiūrėti ir įsigyti galite Kaune, į kitus miestus siunčiu Jums patogiu būdu.
Daugiau dronų ir jų detalių rasite paspaudę "Visi pardavėjo skelbimai" arba užsukę į mano puslapį:
https://www.skelbiu.lt/pasiulymai/fpvdronai/

Power: Pit/25mW/200mW/500mW/1.5W/2.5W, red light flash 1/2/3/4/5 times correspondingly(2.5W default, frequency locked but can be unlocked.)

Pit: Double click to enter
Weight: 13g
Mounting Hole: 30.6*22.2 mm Or 20*20mm M2 2.5mm depth
Size: 36*27.5*8mm
Consumption: 1.2A/9V


Package Included:
1 x VTX
1 x Silicon Cable

Unlock the frequencies and power levels

Long press the "KEY" button until the Red LED (PWR) is constant on, off, then on again, release the button unlock the all frequencies and power levels, flashed Red LED means in unlocked status, constant Red LED means in locked status.

PIT Mode On/Off

Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off means PIT mode on; Red LED (PWR) on means PIT mode offIn PIT mode, VTx outpout extreme low power.
