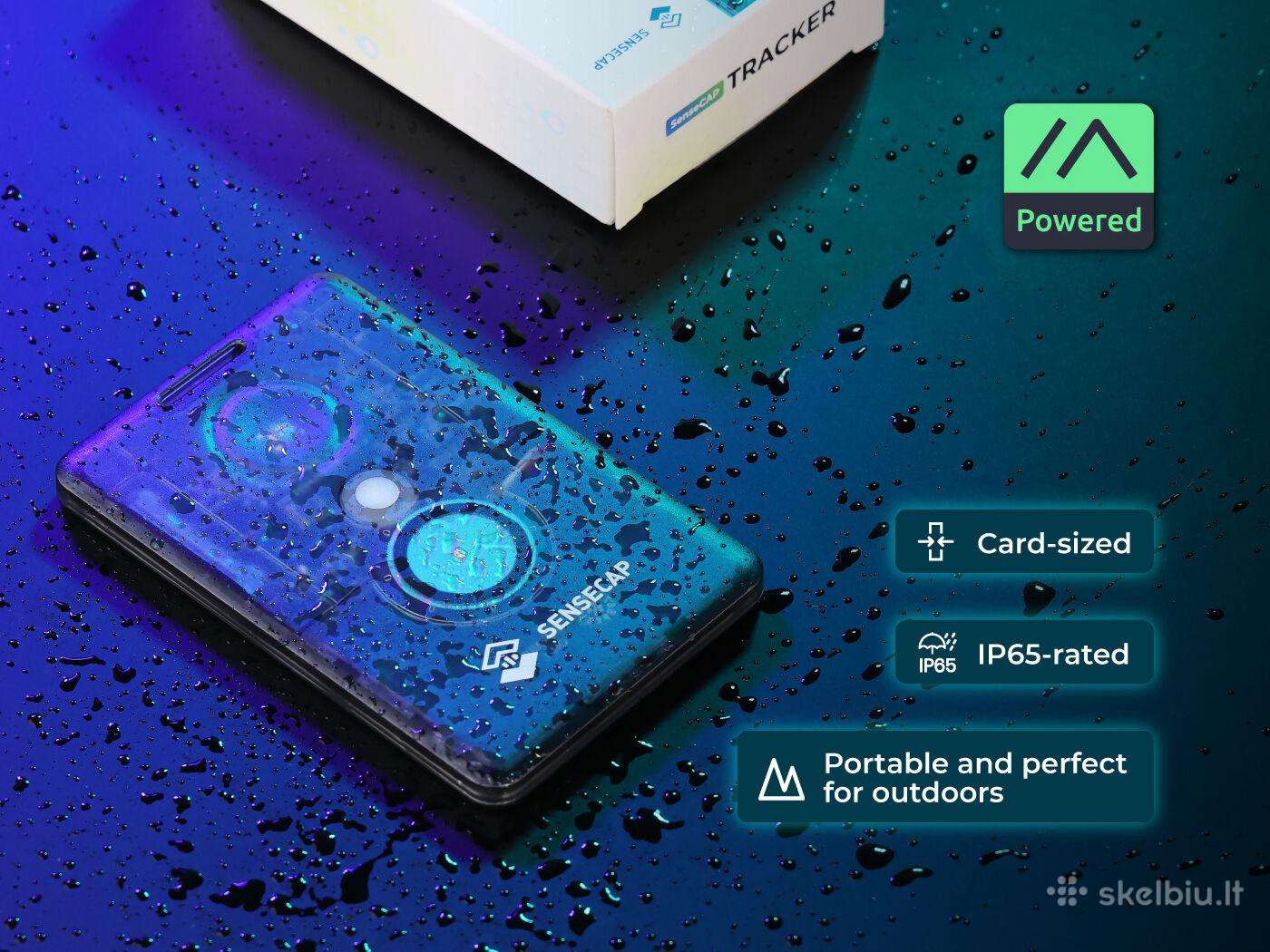

Meshtastic Sensecap Card Tracker T-1000e
Žiūrėti žemėlapyje

50 €

Vilnius

Meshtastic Sensecap Card Tracker T-1000e

Состояние: Новое

50 €

Vilnius

Отправка посылок всего лишь от 2,05 €
Новое

Paskola pirkiniams iki 20 000 €

Finansavimas didesniems pirkiniams, planams ar poreikiams. Užpildykite paraišką ir atsakymą gaukite iš karto. Pinigai pervedami į jūsų banko sąskaitą.

mėn.
Gauti paskolos pasiūlymą
Pavyzdžiui, skolinantis 6000 EUR, kai sutartis sudaroma 84 mėn. terminui, metinė palūkanų norma – 4.9%, sutarties sudarymo mokestis – 0%, sutarties administravimo mokestis – 0.3%, BVKKMN – 11.49%, bendra mokėtina suma – 8611.68 EUR, mėnesio įmoka – 102.52 EUR.

Описание:

https://meshtastic.org/docs/hardware/devices/seeed-studio/sensecap/card-tracker/

Multi-protocol support: Featuring nRF52840 and LR1110, it supports LoRa (global ISM bands in the 863-928 MHz range). After purchasing the T1000-E, you can freely choose your region in the Meshtastic app. It also supports Bluetooth 5.0, Thread, and Zigbee, ensuring compatibility with a wide range of devices and networks.
Powerful Positioning Capabilities: Integrated with the Mediatek‘s AG3335 GPS chip, it provides high-precision positioning services.
Expandable Interfaces: Designed with four pogo pins, it supports USB interface for DFU (Device Firmware Upgrade), serial logging, and API interface, simplifying device management and debugging.
Open Source Support: Compatible with the Meshtastic open-source mesh networking protocol, suitable for long-range and low-power communication needs.
Specification
General
Network protocol

LoRaSupports 863-928 MHz range, Bluetooth v5.1

Temperature

Range: -20 to 60;

Accuracy: 1 (min 0.5, max 1)

Resolution: 0.1

Light

0 to 100% (0% is dark, 100% is brightest)

3-Axis Accelerometer

3-Axis Accelerometer to detect movement

(Not currently used in the Meshtastic firmware)

LED and Buzzer

1*LED and 1* buzzer to indicate status

Button

1* Button to operate

Antenna

Internal (GNSS/LoRa/Wi-Fi/BLE)

Communication Distance

2 to 5km (depending on antenna, installation, and environments)

IP Rating

IP65

Dimensions

85 * 55 * 6.5 mm

Device Weight

32g

Operating Temperature

-20 to +60

Operating Humidity

5% - 95% (No condensation)

Certification

CE /FCC

Battery
Battey Capacity

Rechargeable lithium battery, 700mAh

Battery Life Monitoring

Periodic uplink battery level

Charge Cable

(Adapter not included)

USB magnetic charging cable, 1 meter

Power Input Voltage

4.7 to 5.5V DC

Charging Temperature Limit

0 to +45
