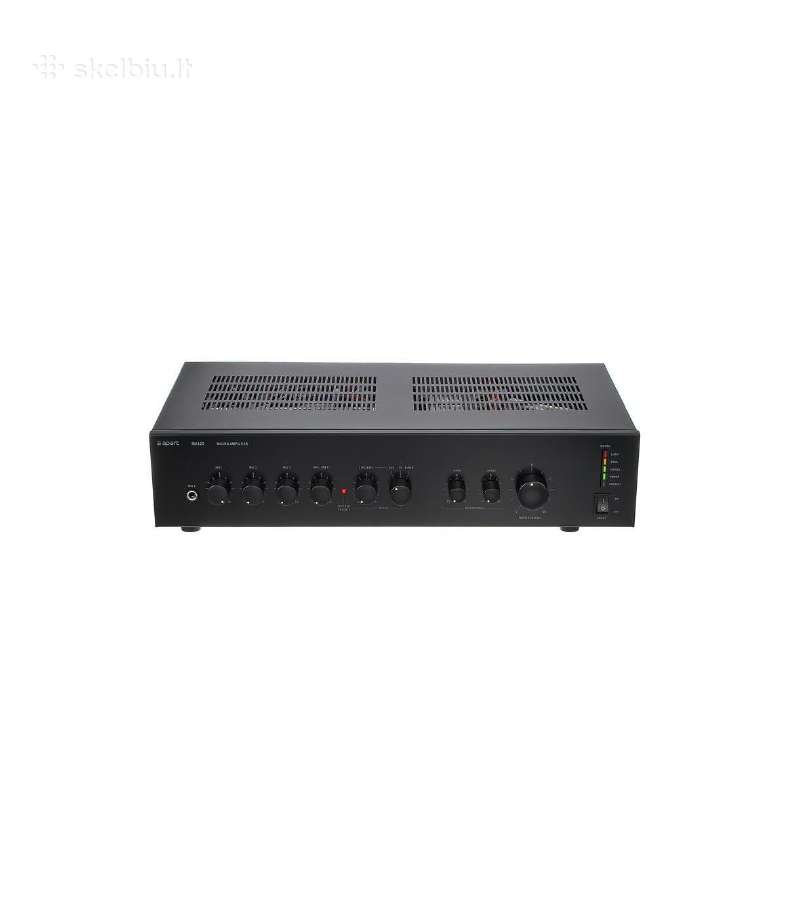

Apart ma125

Power

Output power: 125 W RMS

Music power: up to ~150 W

Outputs:

100 V line

70 V line

50 V line

8 speaker output

Audio performance

Frequency response: 40 Hz – 22 kHz

Total harmonic distortion (THD): < 0.5%

Signal-to-noise ratio: up to ~95 dB

Inputs

4 microphone inputs (XLR, with phantom power)

4 line inputs (RCA / line level)

1 emergency / telephone input

Record output (RCA)

Preamp out / Power amp in for external processors

Features

3-level priority system (emergency > mic > background music)

Built-in adjustable chime (gong)

VOX mute (speaking into mic mutes music)

Bass / Treble tone controls 10 dB

Limiter

24 V priority output for external relays

Power & build

Power supply: 115–230 V AC or 24 V DC emergency power

Rack size: 19", 2U

Dimensions: ~483 88 230 mm

Weight: ~9 kg
