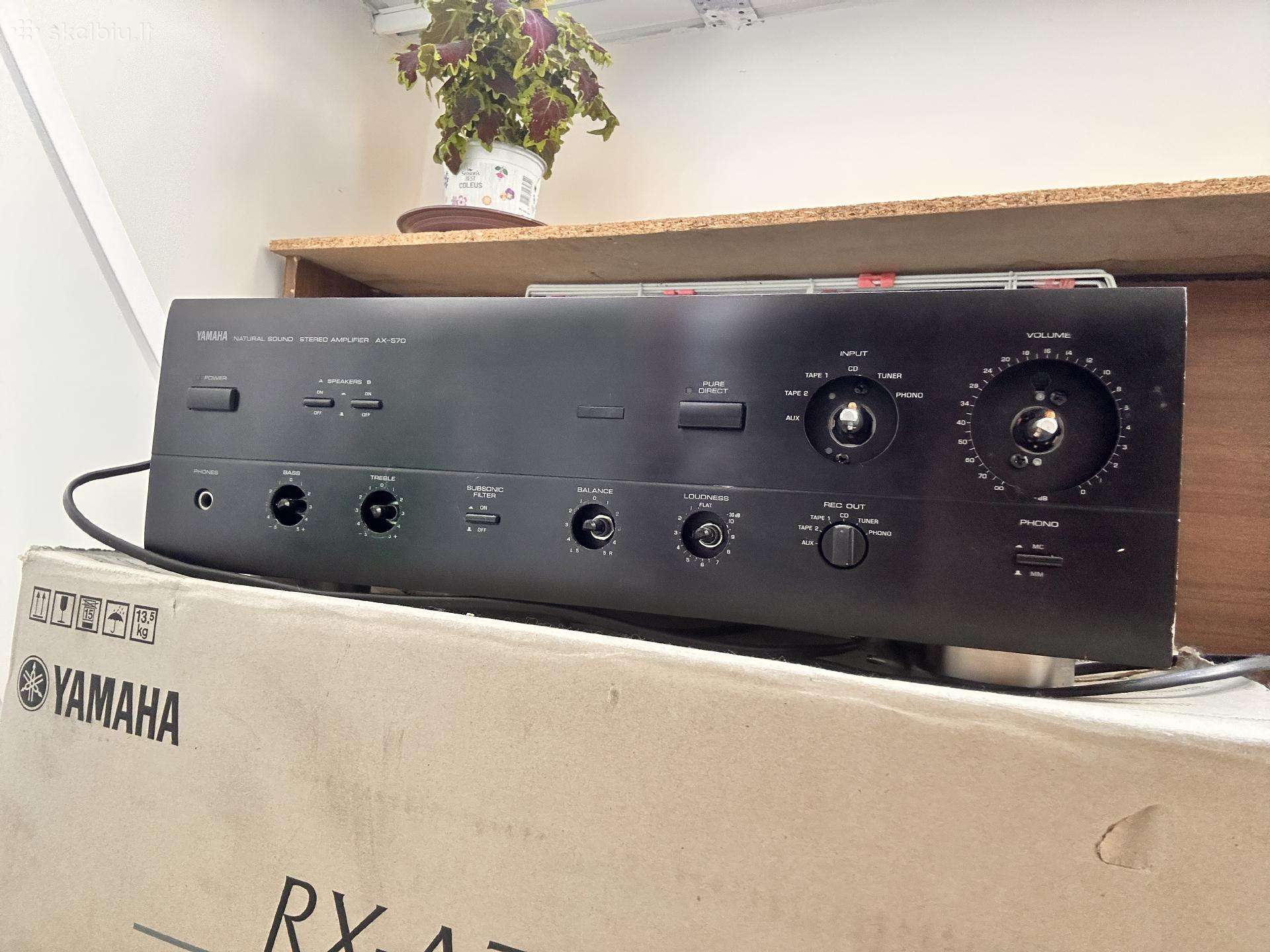

Yamaha ax-570

Veikia gerai, visi kanalai groja. Nėra knobų, matosi nuotraukoje.
Galiu siųsti. Klaipėdoje galima paklausyti kaip groja.
Specifikacijos:
Manufacturer: Yamaha
Model: AX 570
Type: Integrated amplifier
Year of manufacture: 1993 - 1995
Made in: Malaysia
Color: Black, Titanium
Power consumption: 210 W
Dimensions: 435 150 388.5 mm (WHD)
Weight: approx. 13kg

Connections

Number of inputs: 6
Phono switchable
MM 2,5 mV / 47 kOhm
MC 160 µV / 220 Ohm
CD 150 mV / 47 kOhm
Tuner 150 mV / 47 kOhm
Tape 1 + 2 150 mV / 47 kOhm AUX 150 mV / 47 kOhm

Main In 1 V / 10 kOhm
Number of outputs:
Tape 1 + 2
Headphones
2 times 2 loudspeakers

Technical Data

Continuous power
8 Ohm: 2 100 W
4 Ohm: 2 150 W
2 Ohm: 2 200 W
Dynamic power
8 Ohm: 2 140 W
4 Ohm: 2 220 W
2 Ohm: 2 300 W
Total harmonic distortion: at 8 Ohm 0.015 %
Attenuation factor: 320
Frequency response:
20-20,000 Hz at 100 W
10-50,000 Hz at 50 W

Signal-to-noise ratio:
Stereo Channel Separation:
Tone control:
Bass: 10 dB at 20 Hz
Treble: 10 dB at 20 kHz

Loudness: -30 dB at 1 kHz, stepless loudness, natural sound
High Filter: No
Low Filter (Subsonic): -18 dB / oct at 15 Hz
Mute: 2 speaker pairs on / off
Direct/Line-Straight: yes

Special Features

Eight power transistors
Separable pre- and power amplifier
Motor-driven controls for source and volume
Gold-plated CD connectors

Illuminated dots for power, source and volume
Rec Out selector switch
Symmetrical circuit board design
