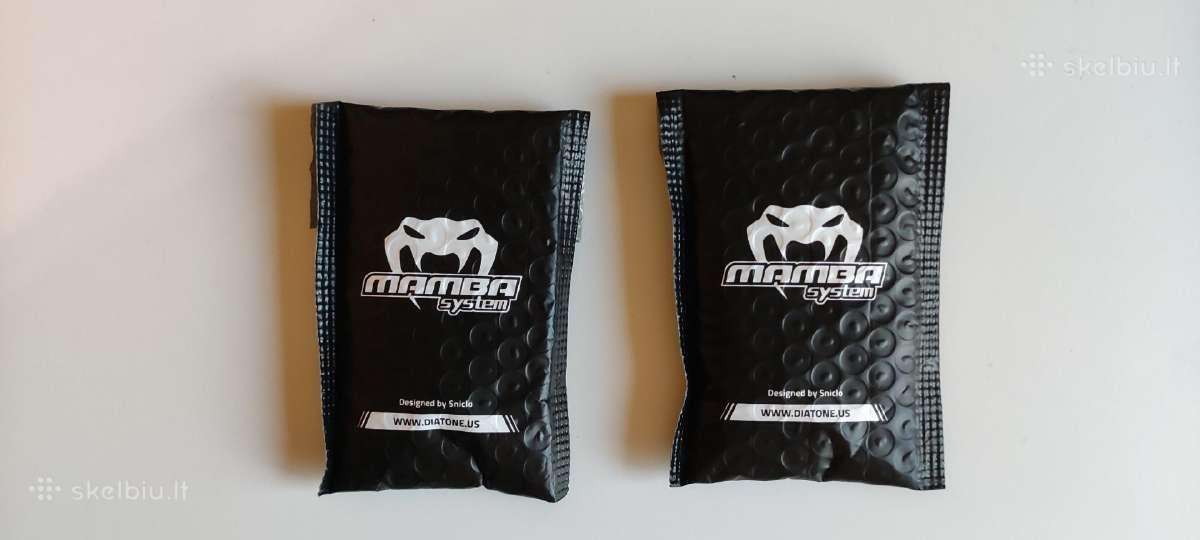

Mamba F405 mk2

naujos dronų mambos F405 mk2. (LIKO 1VNT)

FIRMWARE TARGET FURYF4OSD LEGACY



Specifications

MCU: 168MHz STM32F405RGT6 32BIT
IMU: MPU Series Six-Axis
Baro: No
OSD: BF OSD
Blacbox: 16M Flash Memory
Uarts: 3Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX6
LED: Blue&Orange for FC Status,Green 9V,White 5V,Red 3.3V

WS2812 LED Control: BF LED Control
Smartaudio: Yes
RSSI: Yes
Buzz: Yes


PDB Specifications

Input: 3~6S Lipo (12.6~25V)
VTS Protection: Yes
BEC: 5V 2.5A & 9V 2A

FC Firmware
BetaFlight
Target: FURYF4OSD


Physical

Mounting: 30.530.5mm,3
Dimensions:
Weight: 7.5g
